The VIAVI ATC-5000NG is a next-generation transponder bench test set designed for testing Mode A, C, S transponders and ADS-B systems. Ideal for engineering, certification, manufacturing, and return-to-service.


ATC-5000NG

Test Equipment

Description

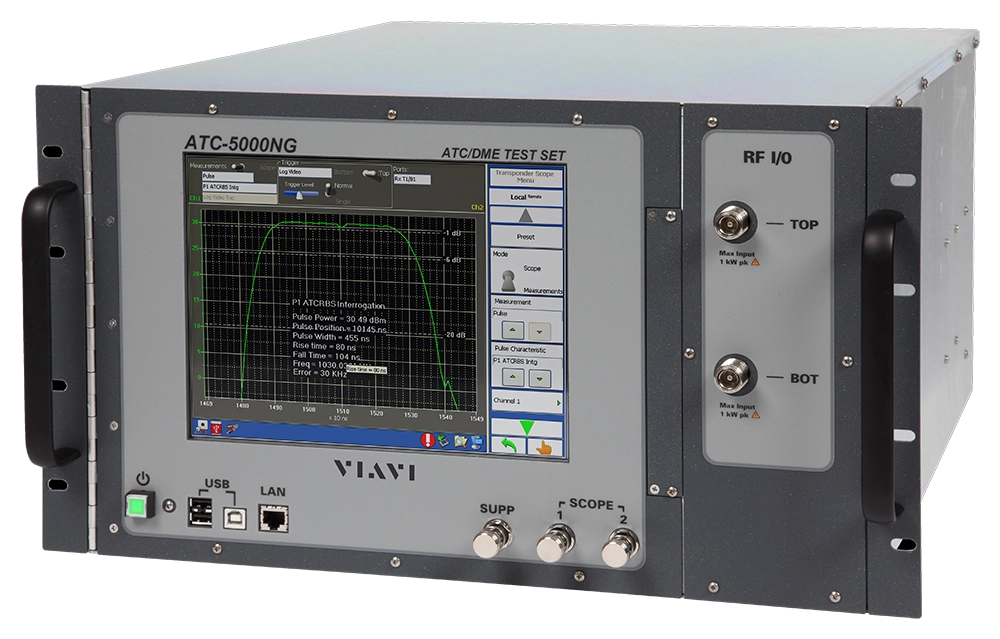

The VIAVI ATC-5000NG Transponder Bench Test Set is a state-of-the-art RF signal generator and receiver built for comprehensive testing of Mode A, C, and S transponders, as well as ADS-B systems. Leveraging modern software-defined radio technology, this test set replaces the commercial functionality of legacy units such as the SDX-2000, ATC-1400A, and S-1403DL.

Designed for engineering development, design validation, manufacturing, and return-to-service testing, the ATC-5000NG offers unmatched flexibility and precision. Its software-driven architecture allows for field updates to add new features and adapt to evolving industry standards. Equipped with a 10.4-inch touchscreen LCD, Ethernet/GPIB remote control, and advanced data logging capabilities, this test set simplifies complex testing procedures while ensuring compliance with DO-181E, DO-260, DO-260A, DO-260B, and DO-282B standards.

Applications include transponder testing, ADS-B target generation, UAT TX/RX capability (optional), and full diversity testing for ground stations and airborne systems.

Features

  • Comprehensive Transponder Testing – Supports Mode A, C, S and ADS-B systems.
  • ADS-B Target Generator – Includes squitter encode/decode and DO-260 series data parsing.
  • Software-Defined Architecture – Field-upgradable for new features and compliance updates.
  • DO-260B Canned Tests – Available as an option for streamlined certification.
  • Multi-Receiver Test Capability – Optional feature for advanced testing scenarios.
  • UAT TX/RX Capability – Optional for extended functionality.
  • Pulse & Frequency Measurement – Ensures precise signal analysis.
  • Dual Transmitters & Receivers – Enables simultaneous testing and diversity checks.
  • 10.4-Inch Touchscreen Display – Intuitive operator interface for all test functions.
  • Remote Control – Via Ethernet or GPIB for automated workflows.
  • TX/RX Data Logging – Comprehensive logging for engineering and compliance.
  • Platform Integration – Tests transponders, ADS-B In/Out receivers, UAT transceivers, DMEs, and ground station equipment.
  • Standards Compliance – Performs most MOPS tests for DO-181E, DO-260, DO-260A, DO-260B, and DO-282B.
